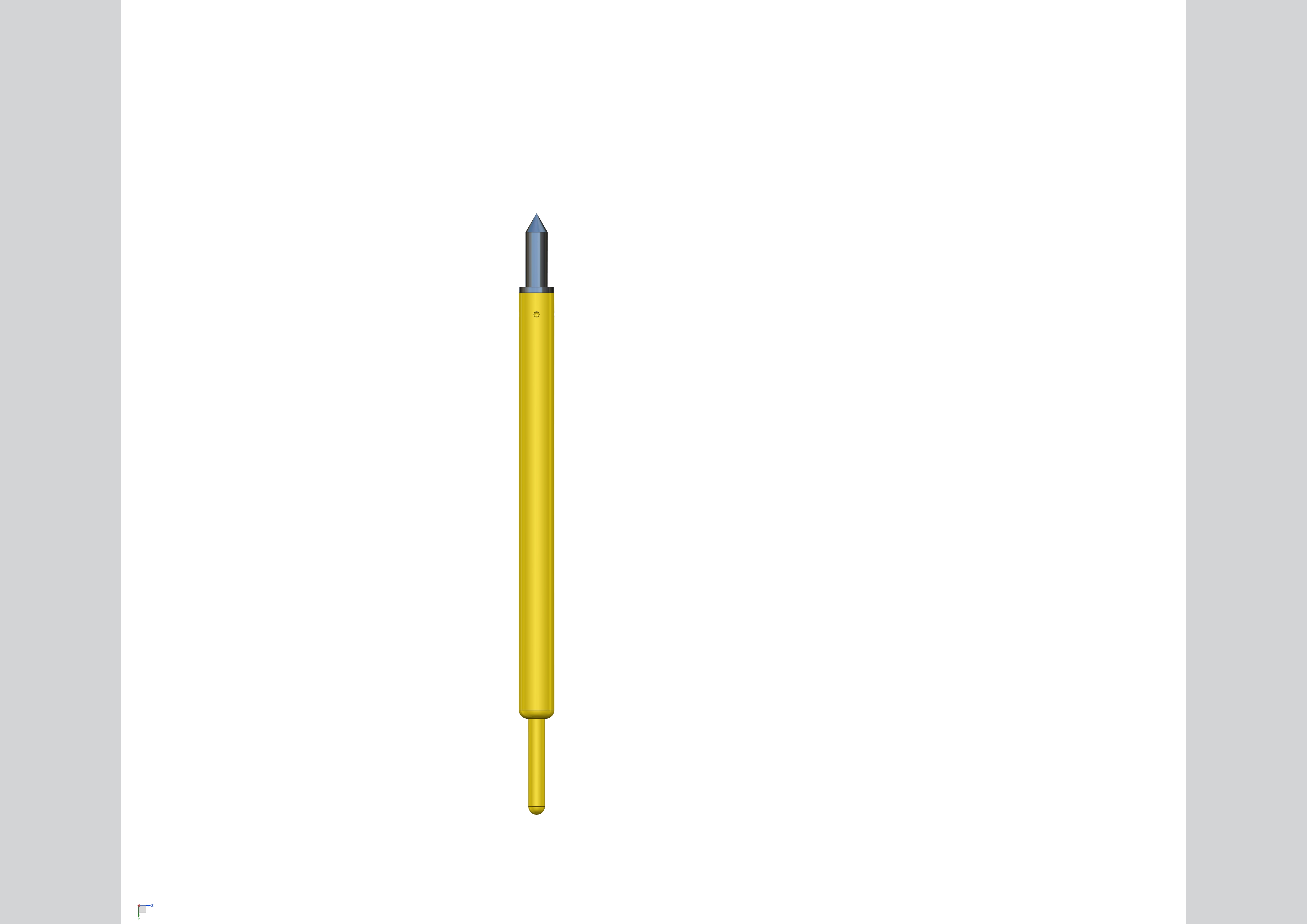

ST032544F020C015030-Pd
库存:10000
Please select a needle
Please select spring
Price:
1~100:
0.00
100~1000:
0.00
1000~5000:
0.00
5000~10000:
0.00
Product description
Download
Receptacle&Tools
Probe Spec:
Mininum Center:
0.40
FullStroke:
0.85
Recommended Stroke:
0.60
Spring Force:
30G±20%@0.60mm
Impedance:
100mΩ(AVG)
Current:
3.0A Continuous
Bandwidth:
10Ghz@-1dB
Temperature:
-45℃~120℃
Spring Life:
200K
Diameter Tolerance:
±0.01
Length Tolerance:
±0.15
Material Spec:
up Gin:
Pd Alloy
Bottom Plunger:
BeCU-Au plated
Spring:
Music Wire-Au plated
Barrel:
Phosphor Copper-Au plated
.
